Introduction



Mechanical systems in construction projects function as the lifelines of buildings, similar to how arteries and veins transport essential resources in the body. Welding ensures strong, durable joints, while prefabrication allows for precise, offsite component production, streamlining installation and improving efficiency.

This book explores the role of welding and prefabrication in building these mechanical “lifelines” and how they keep our modern infrastructure operating effectively. Welding, much like the body’s cellular repair processes, creates strong bonds in critical areas, while prefabrication, akin to streamlined nutrient processing, ensures each component is ready for optimal integration on-site. We’ll cover key welding techniques, the advantages of prefabrication, and how these practices impact various construction types, from towering skyscrapers to vital industrial plants.

Through this lens, you’ll gain insights into how today’s mechanical contractors use innovation and precision to bring essential “life systems” to every building, enabling safe, efficient, and resilient construction projects.



Chapter 1: Introduction to Mechanical Contracting

Mechanical contracting involves the installation and maintenance of HVAC, plumbing, and fire protection systems. Welding and prefabrication are crucial for these systems, ensuring durability and efficiency. Below are bodies that provide support, education, and advocacy for mechanical contractors in the United States, Canada, and Australia.

USA – Mechanical Contractors Association of America (MCAA)
Canada – Mechanical Contractors Association of Canada (MCAC)
Australia – Air Conditioning and Mechanical Contractors Association of Australia (AMCA)



Importance of Welding in Mechanical Systems

Welding is essential in mechanical contracting as it provides strong, durable joints capable of withstanding stress, pressure, and temperature fluctuations. Mechanical systems, especially those involving pipes, structural supports, and frames, require precise welding techniques to ensure safety and longevity.

Welds must meet industry standards to ensure reliability. The American Welding Society (AWS) which is in conjunction with ASME (The American Society of Mechanical Engineers) standards provides guidelines and certifications that mechanical contractors follow to ensure the quality of welding in mechanical systems.

Prefabrication in Mechanical Contracting

Prefabrication involves offsite fabrication of mechanical system components, improving quality, reducing labor costs, and enhancing safety.

Overall, prefabrication is revolutionizing mechanical contracting by improving productivity, reducing project risks, and enabling faster project completion. See Chapter 3, where we dive into more specifics on this topic, and also see the key industry standards and regulations, including all the welding codes in North America in the appendix.

Trends and Innovations in Mechanical Contracting

The industry is evolving with new technologies and practices that increase efficiency and reduce project costs. Some key trends include:

• Welding automation: Automated systems are increasingly used to improve the consistency and speed of welding operations.
• Building Information Modeling (BIM): BIM software helps design, plan, and execute mechanical systems with greater accuracy, reducing errors and enhancing collaboration.
• Sustainability: Green building initiatives are driving innovations in energy-efficient systems, influencing mechanical contracting practices.

The mechanical contracting sector in North America is poised for significant growth in the coming years, driven by various factors across residential, commercial, and industrial segments.

Market Growth Projections:

• Mechanical Services: The demand for mechanical services is anticipated to grow at a compound annual growth rate (CAGR) of 8.0% from 2024 to 2030. Citation.
• Overall MEP Services: The Mechanical, Electrical, and Plumbing (MEP) services market in North America is projected to expand by USD 23.37 billion between 2024 and 2028, reflecting a CAGR of 7.73% during this period. Citation.



Key Drivers of Demand:

• Infrastructure Investments: Significant government investments in infrastructure are bolstering the construction industry, leading to increased demand for mechanical contracting services. Citation.
• Technological Advancements: The adoption of automation, robotics, and data-driven decision-making is transforming industrial contracting, enhancing efficiency and productivity. Citation.
• Sustainability Initiatives: A growing emphasis on sustainable building practices and energy efficiency is driving the need for advanced mechanical systems in new constructions and retrofits. Citation.
• Urbanization and Smart Cities: The development of smart cities and urban redevelopment projects are contributing to the demand for sophisticated mechanical systems. Citation.



Industry Outlook:

The construction industry in 2024 was characterized by strong fundamentals, with a 10% increase in nominal value added and a 12% rise in gross output. Construction spending surpassed USD 2 trillion, maintaining a balanced trajectory in the first half of 2024. Despite challenges such as high interest rates and price inflation, the sector’s employment level reached 8.3 million in July 2024, exceeding its previous peak of 7.7 million in 2006. Citation.

Looking ahead to 2025, there is optimism due to anticipated gradual decreases in short-term interest rates, following a 50 basis point cut by the Federal Reserve in September 2024. Improving economic conditions are expected to influence construction demand across various segments, with declining mortgage rates potentially boosting residential construction activity. Additionally, the increasing adoption of artificial intelligence and advanced computing across industries is likely to drive data center construction. Citation.

In summary, the mechanical contracting industry in North America is experiencing robust growth, supported by infrastructure investments, technological advancements, and a focus on sustainability. These factors contribute to a positive outlook for the sector in the near future.



Trends in Employment

The industry is also quite strong in terms of employment compared to other industries. The median annual wage for mechanical engineers was $99,510 in May 2023, and the overall job outlook looks bright for the future. Employment of mechanical engineers is projected to grow 11 percent from 2023 to 2033, much faster than the average for all occupations. About 19,800 openings for mechanical engineers are projected each year, on average, over the decade. Many of those openings are expected to result from the need to replace workers who transfer to different occupations or exit the labor force due to people retiring.



The Welder Shortage

There are 771,000 estimated U.S. welding professionals as of 2024. The American Welding Society (AWS) projects that 330,000 new welding professionals will be needed by 2028, with 82,500 average welding jobs to be filled annually between 2024 and 2028.

This shortage is being driven by an aging workforce, fewer young workers entering trades, and increased demand across construction, automotive, energy, and infrastructure sectors. The average age of a welder in the U.S. is 55, meaning many will retire in the next decade, leaving a significant gap in skilled labor.

Simultaneously, industries are transforming due to infrastructure modernization efforts and renewable energy projects, both of which rely heavily on welding. The shortage poses operational challenges, such as increased costs and delays in project completion, potentially hindering economic progress. A significant but often overlooked factor in the welder shortage is the health risks associated with the profession. Welding exposes workers to hazardous fumes and gases, ultraviolet (UV) radiation, and extreme heat.

With all of these factors and risks relating to health and the shrinking labor force, the need for welding automation will increase at a rapid pace.



Chapter 2: Welding Techniques and Applications in Mechanical Systems

Welding is one of the core processes in mechanical contracting. The choice of welding technique depends on the materials, environment, and specific requirements of the system being installed.



Overview of Welding Processes

TIG Welding

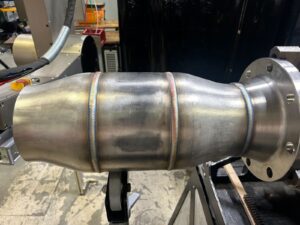

TIG (Tungsten Inert Gas) welding is a versatile process known for producing clean and precise welds. It uses a non-consumable tungsten electrode and is ideal for welding thin materials or intricate joints. TIG welding is frequently used in piping systems and other mechanical installations requiring high precision and cleanliness.

MIG Welding

MIG (Metal Inert Gas) welding uses a continuous wire electrode fed through a welding gun. It is a faster process compared to TIG welding and is ideal for joining thicker materials. MIG welding is commonly used in industrial settings due to its efficiency and ease of automation.

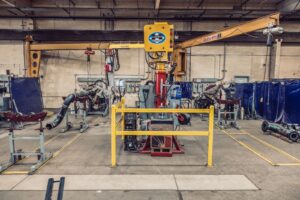

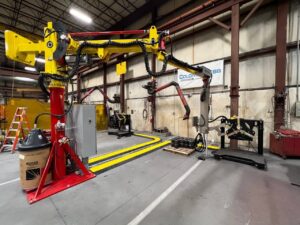

Welding Automation: The Spool Welding Robot

Novarc Technologies’ Spool Welding Robot (SWR™) offers a game-changing solution for mechanical contracting companies. Novarc has two separate solutions for both MIG and TIG welding capabilities as well as an advanced autonomous feature upgrade currently available on the MIG solution. Automating the welding process ensures high precision and efficiency while allowing welders/operators to focus on welds that a robot cannot perform and other ancillary tasks. This cutting-edge system is designed to streamline operations, improve safety, and deliver consistent results for complex pipe welding projects.

Main Benefits of the SWR:

• Enhanced Productivity: The SWR automates repetitive tasks, significantly reducing welding time and increasing throughput. Expect productivity gains of 3-5X for carbon steel and up to 12X for stainless steel.
• Precision and Quality: With TIG welding and autonomous features, the SWR ensures high-quality welds with minimal defects (under 1% repair rates).
• Cost Savings: By minimizing human error and optimizing weld quality, the SWR lowers rework costs and material waste, providing a strong return on investment.





Welding for HVAC Systems

HVAC systems require various welding techniques depending on the type of material and system design. Steel, copper, and aluminum pipes are often welded to create leak-proof joints capable of handling the temperature and pressure changes within HVAC systems.

While both TIG and MIG welding are used for stainless steel, TIG welding is generally considered the preferred and more common method for achieving high-quality, precise, and aesthetically pleasing welds on stainless steel, especially for thinner sections. While MIG welding is employed for structural components like ductwork and frames. Quality welds ensure HVAC systems are energy-efficient and perform reliably over time.



Welding in Plumbing and Piping Systems

Plumbing and piping systems are essential for delivering water, gas, and other fluids within buildings. Welding plays a crucial role in ensuring these systems are leak-proof and can handle the pressures required by the building’s operations.

Carbon steel and stainless steel are frequently welded in mechanical contracting. In industrial and commercial construction, piping systems must meet stringent codes and quality standards to prevent leaks, corrosion, and system failure.



Structural Welding in Mechanical Systems

Mechanical systems often involve structural elements that support the overall framework of a building. These structural components include beams, supports, and frames that require durable, long-lasting welds to maintain the integrity of the building.

Arc and MIG welding are commonly used in structural applications due to their strength and efficiency. Structural welding is particularly critical in high-rise commercial buildings and industrial facilities, where safety and stability are paramount.



Quality Control and Inspection in Welding

Weld quality is crucial to the safety and functionality of mechanical systems. Quality control and inspection processes, including visual inspections, radiographic testing, and ultrasonic testing, help ensure welds meet industry standards. Contractors often adhere to AWS and ASME guidelines to certify that welds are of the highest quality.

In the pipe welding world, most pipe fab shops doing projects that require the welds to be x-rayed, have a repair rate of 3-5% with highly skilled human welders. The reality is, that robotics and automation are required to optimize your accuracy and lower repair rates. If you were able to get your repair rate under 1% the impact on your bottom line will be huge. For example, customers who use the Spool Welding Robot are seeing 0% – 0.5% repair rates. Let’s do a simple math equation to determine how this can affect your bottom line: 6,000 welds per year with a 3% repair rate = around $180,000/year in repair costs. Reducing the repair rates to 0.5% = recovering around $150,000/year back onto the bottom line.



Upstream Processes Before Pipe Welding and Their Importance

Before pipe welding begins, several upstream processes must be completed to ensure a high-quality, efficient, and safe welding operation. These processes are critical for ensuring material compatibility, precise fit-up, proper welding conditions, and adherence to project specifications.



Engineering & Design Planning & BIM Software

What It Involves: Planning using blueprints, drawings, and specifications to determine materials, welding details, and code requirements.

Why It’s Important: Ensures correct materials and procedures, prevents design errors, and optimizes material selection.

What is BIM Software? Building Information Modeling (BIM) software creates intelligent 3D models with data about materials and systems, enabling better design and management.



Why is BIM Valuable?

• Improved Design Accuracy & Clash Detection: Identifies conflicts before construction, preventing rework.
• Enhanced Collaboration: Allows real-time collaboration among teams.
• Faster Prefabrication: Integrates with prefabrication workflows.
• Cost Savings & Waste Reduction: Optimizes material use and reduces waste.
• Increased Efficiency: Provides automated scheduling and planning.
• Facility Management: Stores data for future maintenance and management.

Popular BIM Software: Autodesk Revit, Navisworks, Trimble SysQue, AutoCAD MEP, Tekla Structures, SolidWorks BIM.



Powerful MEP Workflow Management for Mechanical Contracting

Stratus is a cloud-based workflow management tool specifically designed for the Mechanical, Electrical, and Plumbing (MEP) industry. It integrates Building Information Modeling (BIM) processes with fabrication and installation workflows, aiming to enhance efficiency, accuracy, and collaboration across project teams.

By implementing Stratus, MEP contractors can optimize their workflows from design through installation, leading to increased productivity, reduced waste, and improved project outcomes.

For a visual overview of Stratus and its capabilities, you might find this video helpful: LINK

BIM software is revolutionizing mechanical contracting, prefabrication, and construction by improving design accuracy, reducing costs, and increasing efficiency. By integrating 3D modeling, data analytics, and cloud collaboration, BIM ensures better project outcomes, fewer errors, and streamlined workflows.



Material Procurement & Inspection

What It Involves:

• Ordering pipes, fittings, and flanges based on material specifications
• Verifying mill test reports (MTRs) to ensure correct material composition
• Conducting visual and dimensional inspection of received materials
• Checking for defects such as cracks, laminations, rust, or warping

Why It’s Important:

• Prevents the use of incorrect or defective materials
• Ensures compliance with project codes and standards
• Reduces the risk of delays due to material rejection



Pipe Cutting & Preparation

What It Involves:

• Cutting pipes to the correct lengths using saws, plasma cutters, or CNC machines
• Beveling edges for proper joint penetration using machines or manual tools
• Cleaning pipe surfaces to remove oil, rust, moisture, or mill scale
• Aligning pipe ends using clamps, jigs, or tack welding

Why It’s Important:

• Ensures proper root gap and bevel angle for strong welds
• Reduces welding defects like lack of fusion or incomplete penetration
• Improves welding efficiency and consistency

Utilizing a pipe profiler is crucial in modern mechanical contracting for several reasons:

• Precision and Efficiency: Pipe profilers enable accurate and efficient cutting of complex shapes and profiles, ensuring precise fit-up between components. This precision reduces the need for additional processing, such as grinding, and minimizes material waste.
• Enhanced Productivity: By automating the cutting process, these machines significantly reduce cycle times in material loading and profiling, leading to increased production rates. Features like advanced motion control technology and user-friendly interfaces contribute to this efficiency.
• Improved Safety: Automated pipe profilers minimize manual intervention, reducing the risk of workplace injuries associated with traditional cutting methods.
• Cost Savings: The combination of reduced labor costs, minimized material waste, and increased throughput results in substantial cost savings for fabrication shops.

HGG Group, established in 1984, is a leading specialist in 3D profiling, focusing on the development and manufacturing of advanced cutting machinery and software solutions for the steel fabrication industry. The company offers a range of CNC pipe-cutting machines, beam-cutting lines, and related software systems, serving sectors such as civil construction, offshore engineering, shipbuilding, and general steel industries.

Incorporating advanced pipe profiling technology from companies like HGG allows fabricators to enhance their operations, ensuring high-quality outputs while optimizing efficiency and safety.



Fit-Up & Tack Welding

What It Involves:

• Aligning pipes and fittings with precise spacing (root gap)
• Using clamps, wedges, or pipe alignment tools to hold pieces in place
• Tack welding the joint to prevent movement before full welding
• Ensuring flange alignment and bolt-hole orientation

Why It’s Important:

• Prevents misalignment, which can cause weld stress or leaks
• Reduces distortion during final welding
• Ensures accurate pipe routing to match design plans



Preheating (If Required)

What It Involves:

• Using induction heating, gas torches, or electric blankets to heat the pipe
• Achieving the required preheat temperature based on material type (e.g., carbon steel vs. stainless steel)
• Monitoring temperature using infrared thermometers or temp sticks

Why It’s Important:

• Reduces risk of hydrogen-induced cracking in high-strength steels
• Improves weld penetration and fusion
• Minimizes distortion and residual stresses by slowing the cooling rate of the base material.



Welding Procedure Qualification

What It Involves:

• Selecting the appropriate Welding Procedure Specification (WPS) and Procedure Qualification Record (PQR)
• Ensuring the welder is qualified (WPQ – Welder Performance Qualification)
• Verifying filler metal, shielding gas, and welding parameters match the procedure
• Conducting test welds and destructive/NDT testing to qualify the process

Why It’s Important:

• Ensures code compliance (ASME, API, AWS)
• Confirms weld strength and integrity before production welding
• Helps prevent weld failures and costly rework

Why Upstream Processes Matter

Each of these steps ensures that the welding process starts on a solid foundation, preventing errors that could lead to defective welds, project delays, or structural failures.





Chapter 3: Prefabrication in Mechanical Contracting



Prefabrication is transforming how mechanical systems are built and installed in construction projects. By building components off-site, contractors can improve efficiency, reduce labor costs, and enhance quality control.



What is Prefabrication?

Prefabrication involves constructing mechanical system components in a factory or controlled environment before delivering them to the job site for installation. This process is often used for piping systems, HVAC ductwork, and structural supports.



Benefits of Prefabrication in Construction

Prefabrication offers several advantages over traditional construction methods, particularly for mechanical systems:

1. Reduced project timelines: Prefabrication allows multiple tasks to occur simultaneously, speeding up the overall construction process.
2. Improved precision: Factory settings provide better control over component assembly, resulting in more accurate and consistent builds.
3. Cost savings: Prefabrication reduces the need for on-site labor, lowering labor costs and minimizing the risk of delays due to weather or site conditions.
4. Increased safety: Prefabrication reduces the need for workers to perform potentially hazardous tasks on-site, such as working at heights or in confined spaces.



Challenges and Solutions in Prefabrication

While prefabrication offers many benefits, there are some challenges to consider, including transportation logistics, coordination between the factory and job site, and ensuring compatibility with on-site construction. However, with proper planning and collaboration between contractors and manufacturers, these challenges can be minimized.



Prefabrication Techniques for Mechanical Systems

• Modular construction: Complete sections of piping, ductwork, or structural supports are prefabricated as modules and delivered to the site for assembly.
• Just In Time Delivery: Logistics and inventory management system where materials, components, and products are delivered exactly when they are needed rather than stockpiled in advance.
• Skid-mounted systems: Mechanical systems, such as pumps or filtration systems, are mounted on skids and assembled off-site. These units are then transported to the project site for installation.
• Pre-Assembled Pipe Spools: Piping sections cut, fitted, and welded off-site before transport.
• Pre-insulated piping: Prefabricated pipes are insulated and assembled off-site, reducing installation time on-site.
• Bathroom and Utility Pods: Fully assembled bathroom, kitchen, or utility modules that include all plumbing, electrical, and mechanical systems



Modular Construction

Modular construction in mechanical systems refers to the process of assembling mechanical, electrical, and plumbing (MEP) components into self-contained, prefabricated modules off-site, which are then transported and installed at the job site. This approach is an extension of prefabrication but focuses on larger, fully integrated mechanical systems rather than individual components.



Key Aspects of Modular Construction in Mechanical Contracting

Pre-Assembled Mechanical Units

Mechanical systems such as HVAC, plumbing, fire protection, and electrical are fabricated into pre-engineered modules.

Common examples include:

• Mechanical skid packages (pumps, chillers, boilers)
• Prefabricated pipe racks
• Multi-trade MEP racks
• Ductwork and air handling unit modules

Off-Site Fabrication & Assembly

Modules are built in a controlled factory environment, reducing on-site labor requirements and improving quality control.

Plug-and-Play Installation

Once transported to the job site, modular units are quickly assembled, requiring only final connections, reducing installation time and labor costs.



Benefits of Modular Construction for Mechanical Systems

• Time Savings – Off-site fabrication allows parallel construction activities, reducing project timelines by 20-50%.
• Labor Efficiency – Skilled trades are used more effectively in a controlled shop environment rather than on-site.
• Quality Control – Factory conditions ensure higher precision and fewer errors compared to field assembly.
• Safer Working Conditions – Eliminates the need for excessive on-site welding, lifting, and assembly in confined or elevated spaces.
• Reduced Site Congestion – Minimizes the need for staging areas, a major benefit for dense urban projects or hospital expansions.
• Sustainability – Less material waste and more efficient energy usage in production.



Challenges of Modular Construction

• Logistics & Transportation – Large mechanical modules require detailed logistical planning for delivery and crane placement.
• Upfront Planning & Coordination – Requires early collaboration between architects, engineers, contractors, and fabricators to ensure modules fit site constraints.
• Site Adaptation – Prefabricated modules must align with existing structures, making retrofits more complex compared to new builds.



Examples of Modular Construction in Mechanical Contracting

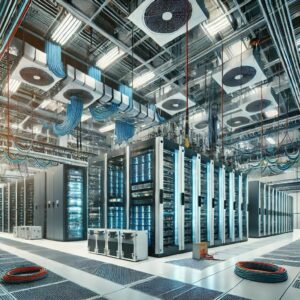

Data Centers:
Pre-fabricated cooling modules, UPS (Uninterruptible Power Supply) units, and power distribution systems are built off-site and shipped for fast deployment.

Hospitals & Healthcare Facilities:
Central utility plants (CUPs) and mechanical room skids are prefabricated to support critical hospital operations with minimal downtime.

High-Rise & Commercial Buildings:
Prefabricated MEP racks allow for the efficient installation of HVAC, plumbing, and electrical systems in multi-story buildings.

Industrial Plants & Oil & Gas Facilities:
Pipe skids, pump skids, and chiller systems are prefabricated for faster and more controlled installation.



Modular Construction vs. Traditional Stick-Built Approach

Feature	Modular Construction	Traditional Construction
Assembly Location	Off-site	On-site
Construction Time	Faster (20-50% savings)	Slower
Quality Control	Higher (factory conditions)	Variable (field conditions)
Labor Efficiency	Fewer workers needed on-site	Higher on-site labor requirements
Safety Risks	Lower (controlled environment)	Higher (on-site risks)
Material Waste	Reduced	Higher



Conclusion

Modular construction is transforming mechanical contracting by making projects faster, safer, and more efficient. It is especially beneficial in industries where time, precision, and cost savings are critical, such as data centers, healthcare, industrial plants, and high-rise buildings.



Just-In-Time Delivery

Just-in-Time (JIT) Delivery is a logistics and inventory management strategy where materials, components, or products are delivered exactly when they are needed in the production or construction process, rather than being stockpiled in advance. This approach minimizes inventory costs, reduces waste, and improves efficiency.



Key Principles of JIT Delivery:

• Demand-Driven Supply Chain – Supplies are ordered and delivered based on real-time demand rather than forecasts.
• Minimized Inventory – Reduces the need for storage space and carrying costs.
• Efficient Workflow – Ensures smooth operations by preventing material shortages or overstocking.
• Close Supplier Coordination – Requires strong relationships with suppliers to ensure timely and reliable deliveries.
• Waste Reduction – Eliminates excess materials, storage costs, and inefficiencies.



JIT Delivery in Mechanical Contracting

In mechanical contracting, JIT delivery is commonly used to streamline construction projects, particularly for prefabricated components, HVAC systems, piping, and electrical systems.

• Prefabrication & Modular Construction: Prefabricated mechanical components (such as ductwork, pipe spools, and equipment skids) are produced off-site and delivered to the job site exactly when they are needed for installation.
• Reduced Job Site Congestion: Helps keep job sites organized by preventing excessive material storage, which can be especially beneficial in urban or tight construction spaces.
• Cost Savings: Minimizes capital tied up in unused materials and reduces damage or loss due to prolonged on-site storage.
• Increased Productivity: Workers can focus on installation rather than material handling and storage.



Challenges of JIT Delivery:

• Supply Chain Disruptions: Delays in supplier deliveries can halt construction progress.
• Logistical Complexity: Requires precise scheduling and coordination with suppliers.
• Limited Flexibility: Any sudden changes in project scope or material requirements can be harder to accommodate.



JIT vs. Traditional Inventory Management

Feature	JIT Delivery	Traditional Inventory
Inventory Levels	Minimal	High
Storage Costs	Low	High
Risk of Shortages	Higher (if supply chain issues occur)	Lower
Efficiency	High	Moderate
Waste Reduction	Significant	Moderate



Conclusion

JIT delivery is an essential strategy in modern mechanical contracting, particularly for large-scale projects and prefabrication. When executed well, it can enhance efficiency, reduce costs, and improve project timelines, but it requires careful planning and strong supplier relationships to mitigate risks.



Case Studies for Pipe Profiling:

Incorporating advanced pipe profiling technology from companies like HGG allows fabricators to enhance their operations, ensuring high-quality outputs while optimizing efficiency and safety.



Sealevel Construction, Louisiana

Challenge: Sealevel Construction sought to enhance their fabrication capabilities to improve efficiency and precision in their projects.

Solution: In 2020, they invested in HGG’s ProCutter 600, a CNC pipe-cutting machine designed for high-precision profiling.

Outcome: The implementation of the ProCutter 600 led to immediate improvements in cutting accuracy and operational efficiency, significantly benefiting their fabrication processes.

For a detailed overview, you can watch their case study video: LINK



MMC Contractors, Nebraska

Challenge: MMC Contractors needed a solution to handle complex pipe-cutting tasks with enhanced precision and reduced manual labor.

Solution: They adopted HGG’s PC900 RB, a robust pipe-cutting machine equipped with advanced automation features tailored to their shop layout.

Outcome: The PC900 RB streamlined their cutting processes, improved cut quality, and minimized manual intervention, leading to increased productivity and efficiency.

For more insights, you can view their case study video: LINK

These case studies illustrate how HGG’s cutting-edge pipe-cutting machines can lead to substantial improvements in efficiency, precision, and overall productivity across various industries.



Case Studies Pipe Welding Productivity and Quality:

ColonialWebb

ColonialWebb, a leading contractor based out of Richmond, VA, achieved substantial productivity gains by incorporating Novarc’s Spool Welding Robot (SWR), especially in high-demand, space-limited projects. The SWR increased their welding output by over 200%, boosting production from 120 to 400 weld inches per shift for larger pipes. Additionally, using SWR led to an estimated 60% reduction in welding labor costs and significantly alleviated skilled labor shortages, as even less experienced operators could handle the robot. This automation improved ColonialWebb’s efficiency, allowing them to maintain quality and meet tighter project deadlines.



Read the full case study HERE



Harder Mechanical Contractors

Harder Mechanical Contractors, operating in 11 western states, boosted productivity and addressed labor shortages by implementing Novarc’s Spool Welding Robot (SWR). This advanced cobot enabled the company to increase weld productivity to over 200 Factored Diameter Inches (FDI) per shift, with the potential to reach 300 FDI on larger pipes, doubling a skilled welder’s typical output. The SWR also achieved a near-zero repair rate, lowering failure rates to less than 1% from the industry’s 3-5% average. The robot’s easy operation allowed even apprentices to achieve x-ray quality welds, addressing the skills gap while enhancing safety and quality.

Read the full case study HERE



Chapter 4: Applications in Various Types of Construction Projects



Welding and prefabrication play crucial roles in various types of construction projects, from commercial buildings to industrial plants and infrastructure projects. Each project type has its unique requirements and challenges, but the benefits of welding and prefabrication are consistently evident across all sectors.





Welding and Prefabrication in Commercial Construction

Commercial buildings, such as offices, shopping malls, and hospitals, require extensive mechanical systems to operate efficiently. Welding and prefabrication are commonly used for HVAC systems, plumbing, and fire protection systems in these projects.

In commercial construction, prefabricated HVAC units can be installed quickly and with minimal disruption to other trades on-site. Welding is essential for joining large pipes and structural components, ensuring the integrity and safety of the building.



Mechanical Contracting for Industrial Projects

Industrial facilities, such as factories, manufacturing plants, energy facilities and data centers (more on this below) often involve complex mechanical systems that require precision welding and prefabrication. Piping systems, pumps, and pressure vessels are essential components in industrial plants, and prefabrication helps reduce downtime and improve efficiency during installation.

Industrial projects also benefit from welding automation, which can speed up the process and improve the quality of welds. Robotic welding systems are often used in these settings to join large, heavy materials quickly and accurately.



Residential Construction: Opportunities and Challenges

While welding and prefabrication are more common in commercial and industrial projects, they also play a role in residential construction. Prefabricated plumbing and HVAC systems can help streamline the construction of apartment buildings and housing developments.

However, residential projects often face challenges such as smaller workspaces, lower budgets, and tighter timelines. Prefabrication can help overcome some of these challenges by reducing on-site labor and allowing for faster installation of mechanical systems.



Infrastructure Projects: Integrating Mechanical Systems

Infrastructure projects, such as bridges, tunnels, and airports, often involve large-scale mechanical systems that require specialized welding and prefabrication techniques. These systems are critical to the functionality and safety of the infrastructure.

For example, airport construction often involves the installation of complex HVAC systems to maintain air quality and temperature control. Prefabricated HVAC units and piping systems can be delivered to the site and installed quickly to meet tight project timelines.



AI Advancement & Data Centers

The rapid advancement of artificial intelligence (AI) is significantly driving the demand for data centers, which in turn is impacting the mechanical contracting industry. This surge necessitates the construction and maintenance of sophisticated facilities equipped to handle the substantial computational requirements of AI applications.

Key Factors Influencing Demand:

• Exponential Growth in Data Center Construction:
  The global data center market is experiencing unprecedented expansion, largely due to AI adoption and increased data processing needs. Projections indicate that data center power demand could increase by up to 165% by 2030. Citation.
• Significant Investments by Major Tech Companies:
  Leading technology firms are making substantial capital expenditures to enhance their AI capabilities. For instance, Amazon plans to invest $100 billion, Alphabet $75 billion, Microsoft $80 billion, and Meta up to $65 billion in AI-related infrastructure. Citation.
• Challenges in Meeting Energy Demands:
  The escalating energy requirements of AI-driven data centers are leading to potential shortages in data center space and power supply, particularly in regions like Europe. Despite a projected 22% increase in capacity by 2025, demand is expected to outpace supply, highlighting the need for efficient energy solutions. Citation.
• Innovations in Sustainable Energy Integration:
  To address the rising energy consumption, companies are partnering with developers to build data centers co-located with renewable energy sources such as solar, wind, and battery storage. Google’s recent $20 billion partnership exemplifies this trend towards sustainable infrastructure. Citation.



Implications for Mechanical Contracting:

The burgeoning demand for AI-capable data centers presents significant opportunities for the mechanical contracting industry, including:

• Design and Installation of Advanced HVAC Systems: Ensuring optimal cooling and energy efficiency for high-density computing environments.
• Implementation of Sustainable Energy Solutions: Integrating renewable energy sources and efficient power management systems to meet the growing emphasis on sustainability.
• Maintenance of Complex Mechanical Systems: Providing ongoing support to ensure the reliability and efficiency of critical infrastructure.

In summary, the intersection of AI growth and data center expansion is a pivotal driver of demand in the mechanical contracting sector, necessitating innovative approaches to design, energy management, and system maintenance.



Conclusion

Welding and prefabrication are essential components of mechanical contracting, enabling contractors to deliver high-quality, efficient, and safe systems for a wide range of construction projects. As technology advances, welding and prefabrication will remain vital to mechanical contracting’s efficiency and innovation. On a larger scale, welding and prefabrication are vital components to building our society’s essential infrastructure, and because of this, we should all give a round of applause to our mechanical contractors and engineers around the world.



Appendix



Key Industry Standards and Regulations

Mechanical contracting and welding must comply with various industry standards, including those set by the American Welding Society (AWS), the American Society of Mechanical Engineers (ASME), and other local building codes. These standards ensure that mechanical systems meet safety, durability, and functionality requirements.
In North America, mechanical contractors typically adhere to various welding codes to ensure the quality, safety, and compliance of their work. Here are some of the most commonly used welding codes in the USA:



American Welding Society (AWS) Codes

1. AWS D1.1: Structural Welding Code – Steel
   • Governs the welding of structural steel, commonly used in construction and infrastructure projects.
2. AWS D1.6: Structural Welding Code – Stainless Steel
   • Focuses on welding stainless steel, often used in chemical plants, food processing facilities, and other environments requiring corrosion resistance.
3. AWS D1.3: Structural Welding Code – Sheet Steel
   • Covers welding for sheet steel (light-gauge steel), typically used in HVAC systems and ductwork.
4. AWS D10 Series: Pipe Welding Codes
   • Includes specific guidelines for pipe welding applications, such as:
     • AWS D10.11: Welding of Pressure Piping.
     • AWS D10.12: Recommended Practices for Welding Low Carbon Steel Piping.
5. AWS B2.1: Welding Procedure and Performance Qualification
   • Provides standards for qualifying welding procedures and personnel.



American Society of Mechanical Engineers (ASME) Codes

1. ASME Section IX: Welding, Brazing, and Fusing Qualifications
   • Focuses on the qualification of welders and welding procedures commonly used for pressure vessels, boilers, and piping.
2. ASME B31 Series: Code for Pressure Piping
   • Includes codes for different types of piping systems, such as:
     • B31.1: Power Piping (used in power plants and heating systems).
     • B31.3: Process Piping (used in chemical plants, refineries, etc.).
     • B31.9: Building Services Piping (used in HVAC and plumbing).
3. ASME Section VIII: Rules for Construction of Pressure Vessels
   • Governs welding and fabrication of pressure vessels.



Other Relevant Codes and Standards

1. National Fire Protection Association (NFPA) Codes
   • NFPA 51B: Standard for Fire Prevention During Welding, Cutting, and Other Hot Work.
   • Addresses safety practices for welding in construction and industrial settings.
2. ASTM Standards
   • Standards for material properties and specifications that are referenced in welding codes, such as ASTM A36 for structural steel or ASTM A312 for stainless steel piping.
3. International Organization for Standardization (ISO) Standards

Some projects may require compliance with ISO welding standards, such as ISO 9606 for welder qualification.



Canadian Standards Association (CSA) Codes

In Canada, mechanical contractors adhere to various welding codes and standards, which are similar to those in the United States but are tailored to Canadian regulations and industry needs. Below is an overview of commonly used welding codes in Canada:



1. CSA W47.1: Certification of Companies for Fusion Welding of Steel
   • Specifies requirements for companies performing fusion welding of steel, including welder qualifications and welding procedure certifications.
2. CSA W47.2: Certification of Companies for Fusion Welding of Aluminum
   • Similar to CSA W47.1 but focused on aluminum welding.
3. CSA W59: Welded Steel Construction (Metal Arc Welding)
   • Provides requirements for structural steel welding, including design, welding procedures, and inspection.
4. CSA W59.2: Welded Aluminum Construction
   • Covers welding of aluminum structures, often used in lightweight and corrosion-resistant applications.
5. CSA W178.1: Certification of Welding Inspection Organizations
   • Specifies the requirements for companies providing welding inspection services.
6. CSA W178.2: Certification of Welding Inspectors
   • Provides certification requirements for individual welding inspectors in Canada.



Canadian Pressure Equipment Codes

1. CSA B51: Boiler, Pressure Vessel, and Pressure Piping Code
   • Governs the design, fabrication, testing, and inspection of pressure equipment, including boilers and pressure piping.
2. CSA Z662: Oil and Gas Pipeline Systems
   • Addresses the design, construction, operation, and maintenance of oil and gas pipeline systems in Canada.
3. ASME Codes (adopted in Canada)
   • Canada uses several ASME codes, particularly for pressure equipment, under the jurisdiction of provincial and territorial authorities:
     • ASME Section IX: Welding and Brazing Qualifications.
     • ASME B31 Series: Piping Codes, such as B31.1 (Power Piping) and B31.3 (Process Piping).



Regulatory Framework

1. Provincial/Territorial Pressure Equipment Regulations
   • In Canada, pressure equipment is regulated at the provincial and territorial levels (e.g., Technical Safety BC, ABSA in Alberta, TSSA in Ontario).
   • Contractors must ensure compliance with local regulations in addition to national standards like CSA B51.
2. National Energy Board (NEB) / Canada Energy Regulator (CER)
   • Oversees pipeline safety for federally regulated energy infrastructure, requiring compliance with CSA Z662.



Occupational Health and Safety Standards

1. Hot Work Safety
   • Welding activities must comply with federal and provincial occupational health and safety standards, such as those set by WorkSafeBC, Alberta OHS, or similar agencies.
2. Fire Safety Regulations for fire prevention during welding and hot work are often adapted from NFPA 51B standards in the U.S.



Certifications and Training

1. Canadian Welding Bureau (CWB) Certification
   • The CWB certifies welding companies, inspectors, and procedures to CSA W47.1, W47.2, and W178 standards.
   • Certification is mandatory for many projects in Canada, especially those involving structural steel.
2. Red Seal Certification for Welders
   • Red Seal certification is a widely recognized credential for tradespeople in Canada, including welders.

Mechanical contractors in Canada must ensure compliance with these codes and standards to meet regulatory requirements, ensure safety, and maintain quality in welding and fabrication work.

In both countries, mechanical contractors must often determine which codes apply based on project requirements, material types, and jurisdictional regulations. Compliance with these codes ensures safety, quality, and adherence to legal and industry standards. Having a qualified Welding Engineer and Certified Welding Inspector on staff is necessary for success.
