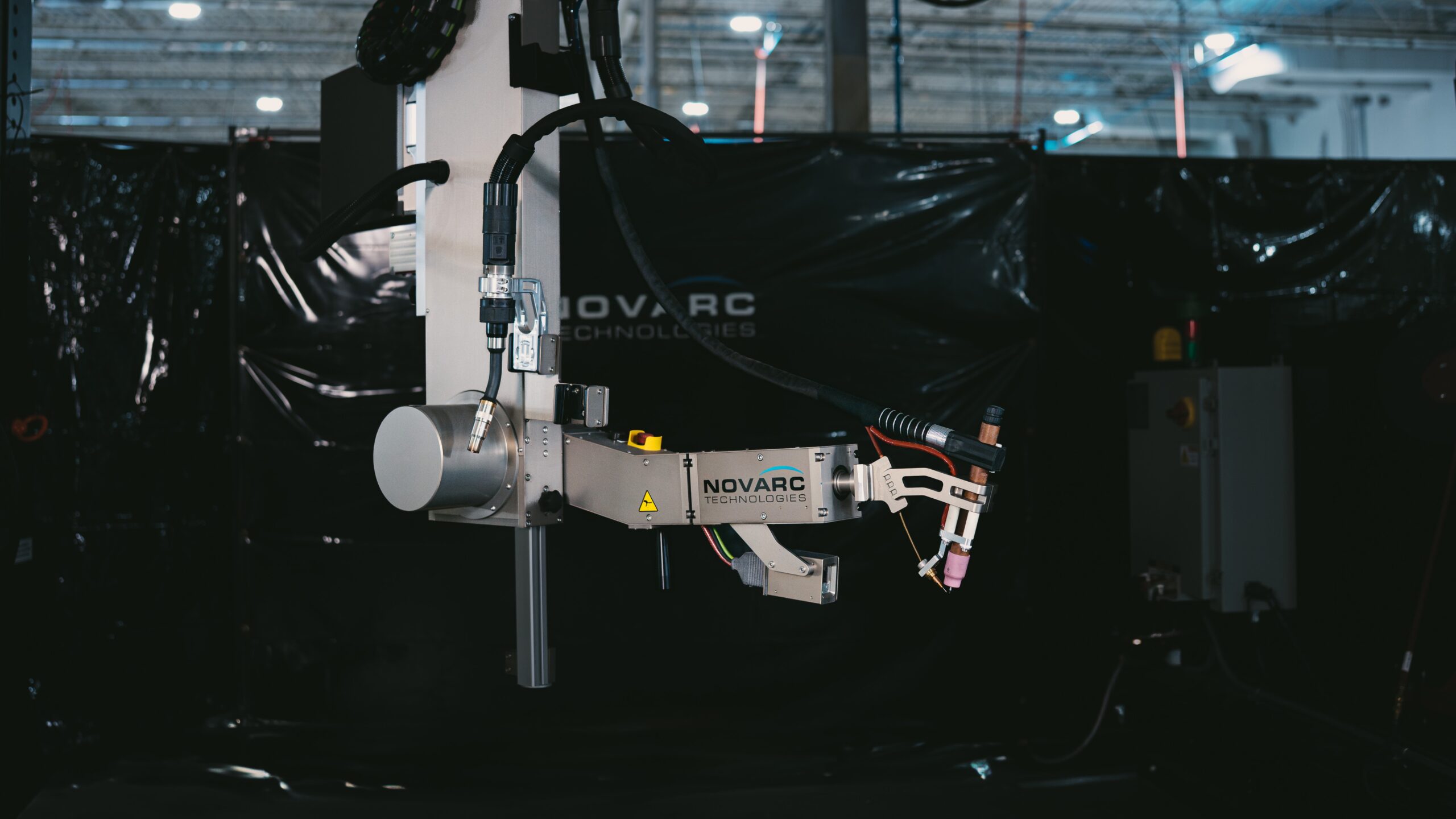

The SWR™-TIGMIG is the most versatile spool welding robot ever created, combining TIG and MIG welding into one seamless autonomous solution. Designed for fabricators who demand X-ray-quality TIG roots and want the speed, flexibility, and throughput of MIG, this system eliminates tradeoffs between precision and productivity. Whether you’re winning diverse projects or meeting strict customer requirements, the SWR™-TIGMIG delivers exceptional adaptability, faster job turnarounds, and reduced operating costs, all with a single system that can be integrated with up to four positioners to further boost productivity.
Weld TIG roots, then switch to MIG welding for fill passes – all in under 30 seconds. Save time, reduce material handling, and eliminate downtime between passes.
Increased Shop Throughput
Achieve up to 4X productivity gains on dual-process welds by combining the precision of TIG with the speed of MIG. Maintain continuous production by aligning the weld process with job requirements, shift by shift.
Shop-Wide Flexibility
Respond to project demands dynamically. Whether you need to weld TIG all the way out, MIG all the way out, or a combination, the SWR™-TIGMIG adapts, eliminating the need for multiple machines and setups.
Staffing Efficiency
Reduce reliance on highly skilled welders. The system ensures consistent root quality and fill performance, making it easier to scale operations while maintaining quality, even in labor-constrained environments.
Features & Innovation
The Future at Your Fingertips
Smallest Industry Footprint
The SWR™-TIGMIG stands out as the industry's only solution with a compact 4' x 4' footprint that can operate with up to four positioners. This feature maximizes your shop space, boosting productivity and giving you a strong edge in a competitive market.

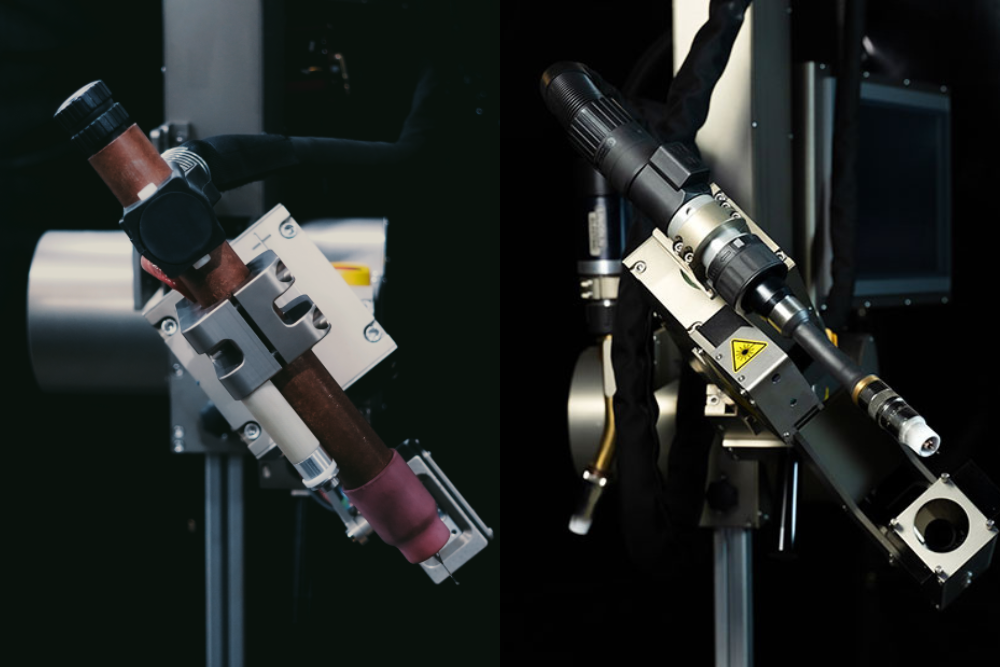

Collaborative MIG & TIG Welding Solution
With the smallest footprint in the industry, the SWR™-TIGMIG can add the needed flexibility to your shop without taking up too much space. Unlike our competitors' bulky systems, the SWR™ cobot fits seamlessly into tight production areas and gets to work immediately, boosting throughput while complementing your existing workforce.
One Camera. Zero Hassle
The single-camera system supports both processes with crystal-clear weld visibility. The intuitive Luna UI provides seamless control over MIG and TIG with intelligent recipes and process memory built in.

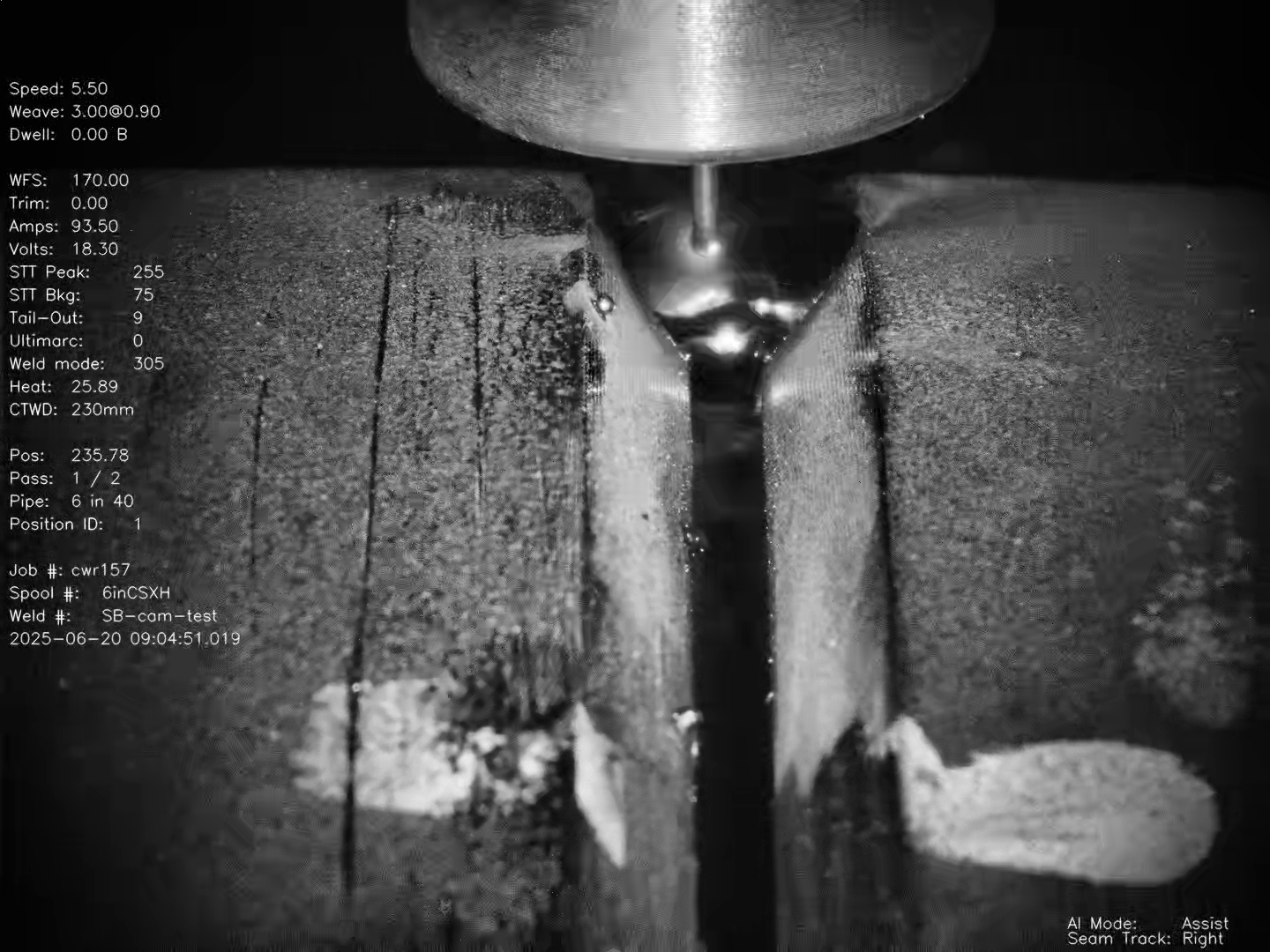

Cutting-edge weld imaging system
Witness the future of weld monitoring with our advanced imaging system. Real-time clarity gives SWR™-TIGMIG operators unprecedented visibility into the welding process, ensuring unmatched precision and accuracy in every weld.
Enhanced view of the groove, puddle, and stick
Every weld is recorded in real-time with key weld parameters embedded on the screen
Improve weld quality by analyzing recorded videos in parallel with the weld parameters saved by NovData™
Hot Filler Wire Technology
The filler wire in our system is "hot," with 80 amps flowing through it. This unique feature significantly contributes to enhanced deposition rates and travel speeds, further optimizing your welding process.
Patented TIP TIG Feeding System
The SWR™-TIGMIG System incorporates TIP TIG, utilizing a patented feeding system. This system superimposes feeding in parallel through a backward/forward movement. This innovative design breaks the surface tension of the puddle, leading to improved solidification of the weld pool and ensuring impeccable weld quality.
Track and Improve your pipe welding productivity with the automatically generated daily operations reports
Bid competitively on projects by applying cost savings gathered from daily operations reports
Manage and track the critical weld parameters for accurate troubleshooting and enhanced quality control practices with the log reports automatically generated for each weld
NovData™
Novarc’s comprehensive production monitoring software, NovData™, improves traceability into your production by automatically creating in-depth production reports.
Here are some highlights of NovData™
Track and Improve your pipe welding productivity with the daily operations reports automatically generated every day
Bid competitively on projects by applying cost savings gathered from daily operations reports
Manage and track the critical weld parameters for accurate troubleshooting and enhanced quality control practices with the log reports automatically generated for each weld
NovSync™
The NovSync™ dashboard helps you to track production and machine trends over time by giving you centralized and secure access to weld videos, daily reports, and NovData™ logs.
You can now get remote, easy access to actionable insights needed to improve your welding operations and become more competitive in your market.
Options
Customized for Your Specific Needs
Positioner Integration
Integrates with up to four positioners for maximum productivity
NovCare Service and Support Packages
Our comprehensive NovCare packages are designed to address your training, maintenance, troubleshooting, and optimization requirements at any stage of the Spool Welding Robot life cycle
BIM Software Integration
The integration allows users to plan their complex construction projects from 3D models, define the properties of pipes and welds in spool assemblies, and track the completion of all fabrication procedures
Travelling Base
The Travelling Base enables the Spool Welding Robot to weld pipe spools up to 120 feet long with enhanced mobility, flexibility, and safety, maximizing productivity for high-throughput fabrication.
Specifications
SWR™-TIGMIG Technical Specifications
Applications
Pipe and pressure vessels from 2”- 30” (50mm – 750mm)
Height
15 ft (4.5m)
Materials
Carbon and low alloy steels. Stainless Alloys (304, 316, Duplex & Super Duplex). Nickel Alloys (CuNi) *
* Contact us for other sizes and materials
SWR Footprint
4’x4’ (1.2m x 1.2m)
Weld Processes
GTAW, GMAW, FCAW, MCAW
Weight
Approximately 3500lb.
Wire Diameter
0.035 – 0.062 in. (0.9 – 1.66 mm)
Reach
15 ft (4.5m)
Power Requirements
SWR™ Requirements
North America – 3-Phase, 208Y/120V, 60Hz, 23A, 5 Wires (V, U, W, Neutral and Ground)
Lincoln Electric Power Source Requirements
North America – 3-Phase AC Voltage/Current: 208V/60A, 230V/54A, 400V/31A, 460V/27A, 575V/21A, 4 Wires (V, U, W and Ground)
